The function components need to be protected in small spaces within handheld electronic devices, such as the sealing of the display screen and camera, the sound sealing of the sound chamber, the permanent fixing of the plug, the impact protection of sensitive components, etc. These need foam to help achieve.

PZ series polyurethane foam meet the needs of these applications. The super soft and slow rebound formula makes the material have a certain impact protection in the premise of sealing. Meanwhile, the excellent anti-compression deformation property of the materials can give a long-term protection for equipment.

Applications:

· LCD sealing，camera sealing

· Acoustic sealing

· Cushion pad for battery and connector

· Impact protection pad

Product features:

· Versatile thickness selection with 0.3mm～2.0mm for different space/gap application.

· Good sealing performance. It can provide good dustproof sealing effect for equipment under proper compression.

· Long-lasting elasticity for steady positioning of parts that need to be fixed.

· Good shock absorption performance. It can effectively protect components and reduce impact damage.

· High level of anti-compression deformation assuring the devices of long-term protection.

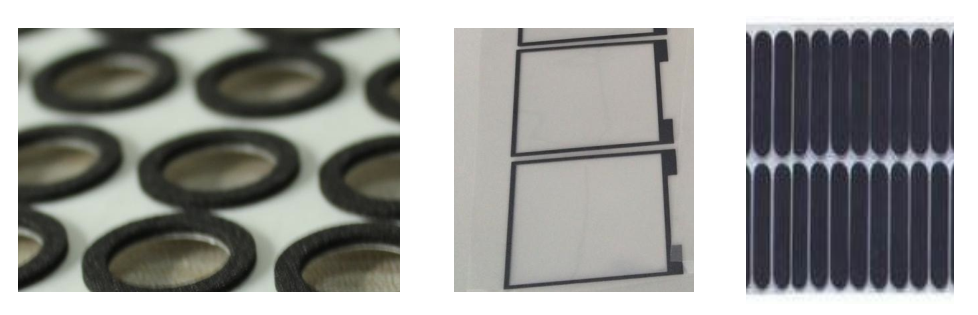

Product application legend:

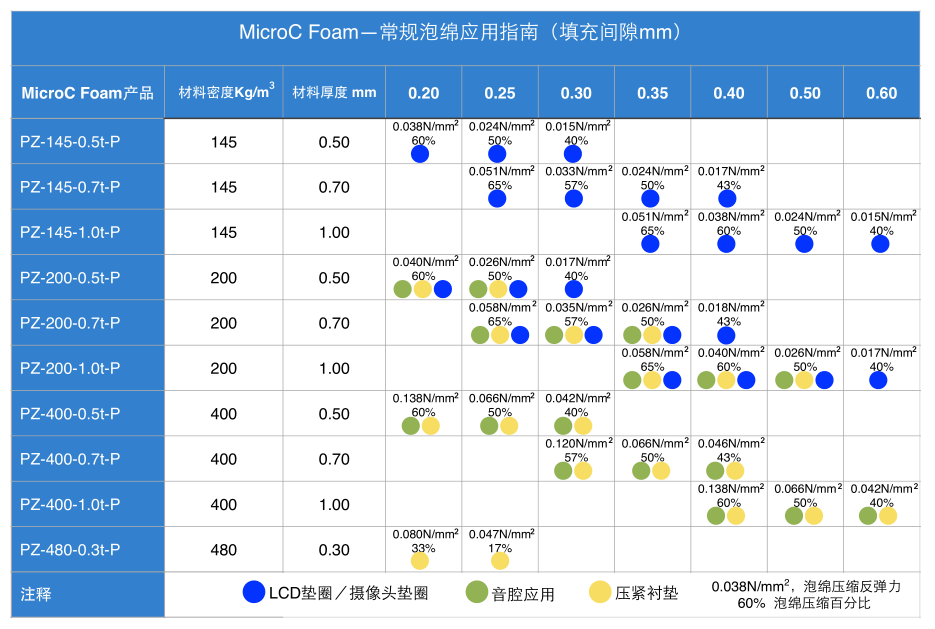

Foam Application Guide:

Instruction for use:

1. Confirm the gap/space thickness.

2. Confirm the thickness of the adhesive required for the foam

3. The thickness of the space minus the thickness of the adhesive is the space actually filled by the foam.

4. Find the material in the Foam Application Guide based on the application location.

For example, for the application for LCD gasket, its actual filling space is 0.20mm, then it is corresponding to PZ-145-0.5t-P and PZ-200-0.5t-P. Furthermore, Customers can filter by experience or determine by installation test.
